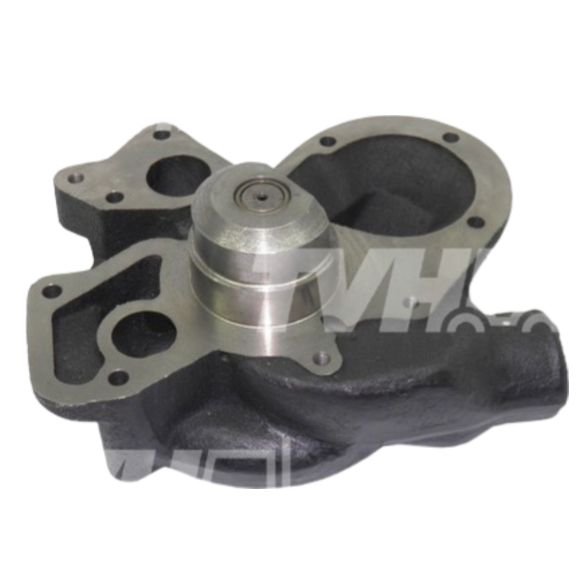

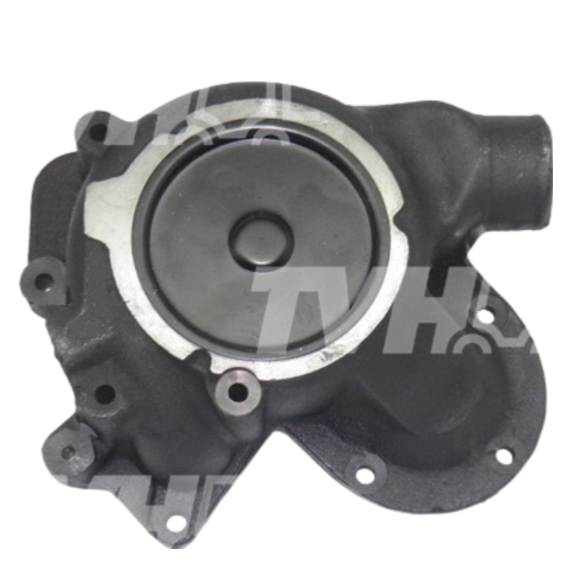

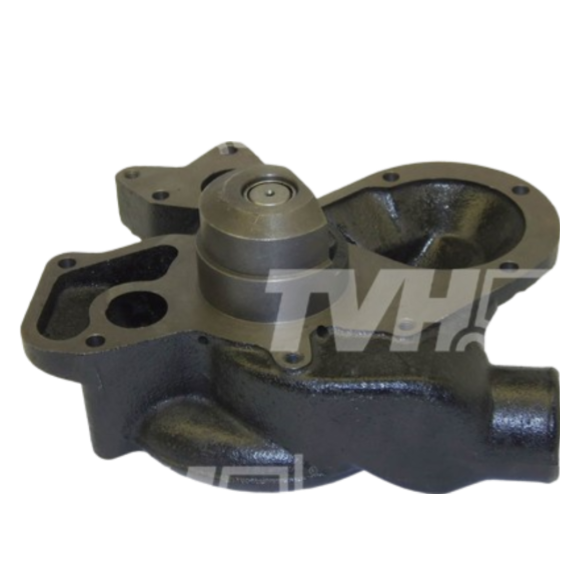

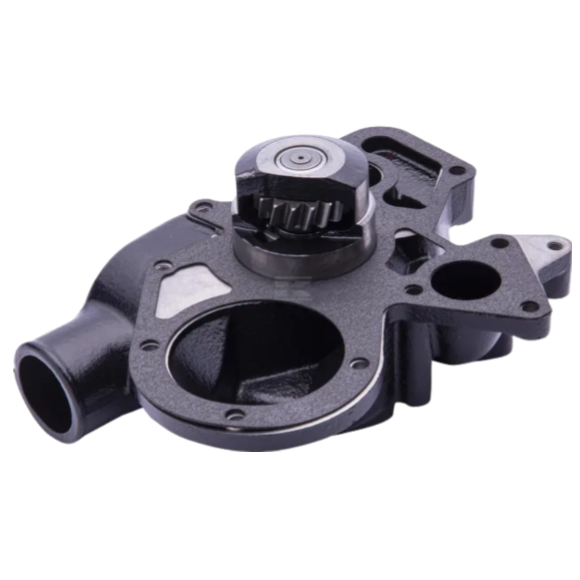

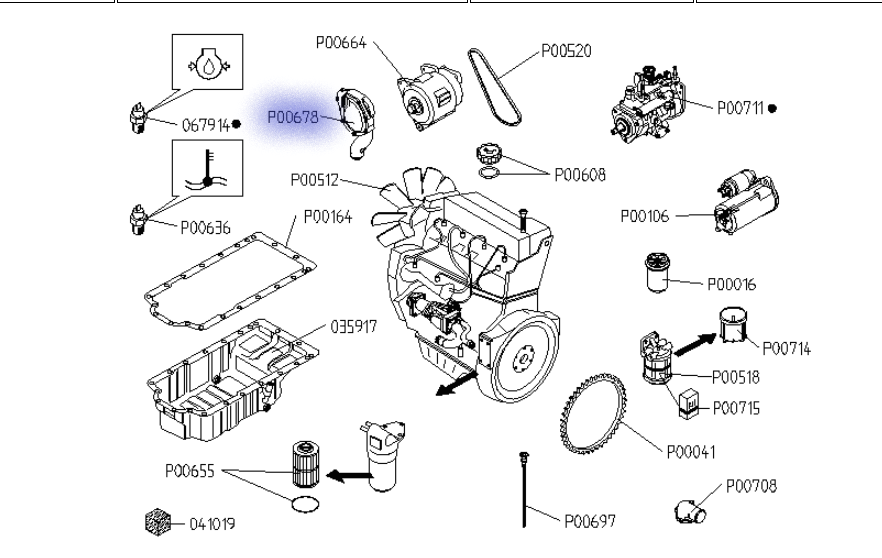

MERLO PERKINS WATER PUMP U5MW0192 KRAMP VERSION / P00678

Sort waterpump
gear
Total height H1 (mm)
125
Maximum length L1 (mm)
285
Shaft diameter D1 (mm)
19
Total number of mounting holes in the flange (holes + thread)
11
Number of holes
8
Diameter biggest mounting hole D4 (mm)
9
Number of threads
3
Biggest thread TA1
M8
Metric pitch Pm1 (mm)
1.25
Smallest centre distance of nearest mounting holes C1 (mm)
28
Biggest centre distance of nearest mounting holes C2 (mm)
113
Number of teeth on gear, type C and D
16
Thread of mounting cooling fan present
NO

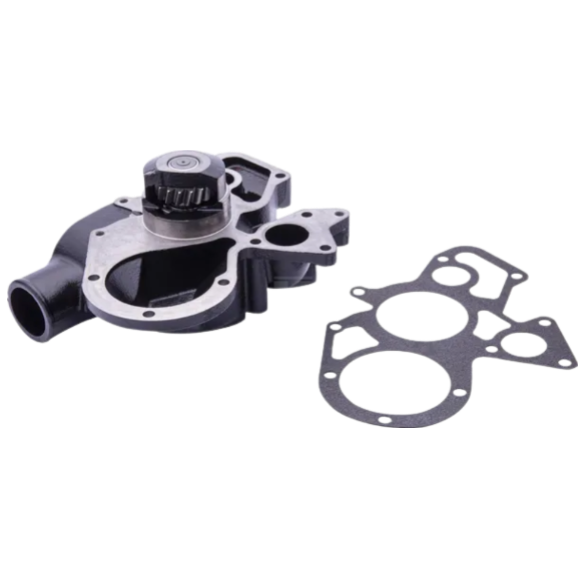

Gasket included
YES
