EXTERNAL LIFT UP/DOWN SWITCH BUTTON 2.7659.141.0

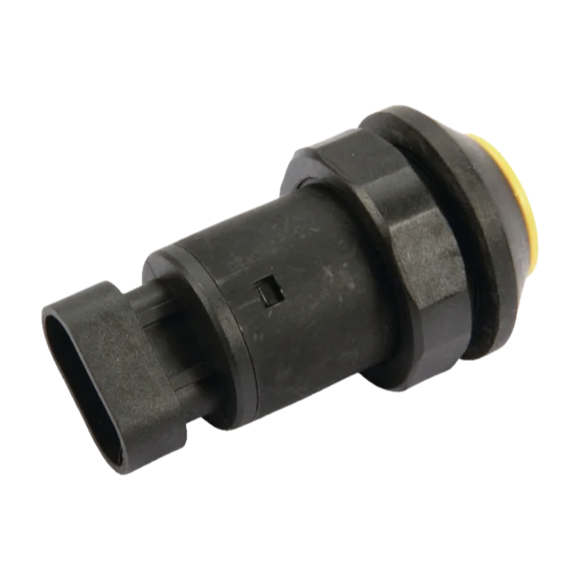

11903002PN Push switch, Lift and lower, round, yellow

Part number
11903002PN
EAN
Unit
Each
Pros
Caution! Pressure switch without stopper
Application range
Push switch for installation
Technical info

Switching voltage: 48V
Switching power: 10 W/VA
Switch point: 3 + - 1 mm
Switching current: 0.3 A
Contact type: NOC
Push button stroke, total: 5 mm
Actuation force: approx. 25 N
Temperature range: -20...+100

Colour button
Yellow
Function

Linkage lift
Linkage lower
