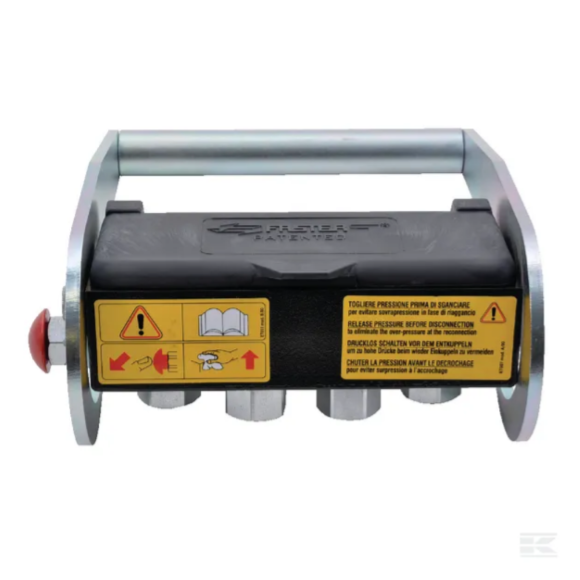

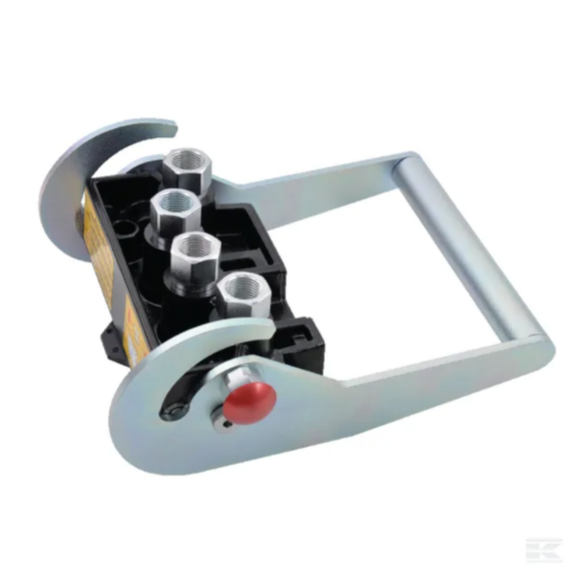

FASTER 2PS06412GFC Quick release 3/8-4x1/2 BSP fe

Part number
2PS06412GFC
EAN
Unit
Each
Details

Can be adapted for various front loader controllers
Couple multiple lines simultaneously
Lock and unlock with a single action
Flat face
Easy to clean

Application range

Stoll front loaders
Walvoil SDM 143 and DLM 142 valves
For applications with frequently changing tools

Properties

No air pockets during coupling
Safety factor when coupled 1:4

Technical info

2P series can be coupled under residual pressure (max. 80 bar)
Series 3P can be coupled to mobile part under full pressure
2P mobile part convertible to 3P by changing coupling inserts

Benefits

Wide range of applications
No line mix-ups
Labour-saving
Low leakage
Coupling keeps dirt out of the system

Long description

Application range:
Stoll front loaders
Walvoil SDM 143 and DLM 142 valves
For applications with frequently changing tools
Benefits:
Wide range of applications
No line mix-ups
Labour-saving
-

Category
DN10
Working pressure
250 BAR
Number of connections
4
Size
3/8 Inch
Max. flow rate
40 l/min
Connectable under pressure
Yes
Connection no 1 diameter
1/2 Inch
Connection no 1 type - male/female
Female
Max working temperature
100 °C
Min. working temperature
-25 °C
Seal material

Nitrile rubber [NBR]
Polyurethane

Valve type
Flat
Housing material

Aluminium
Steel

Housing surface treatment
Anodised
Weight
3821 g
