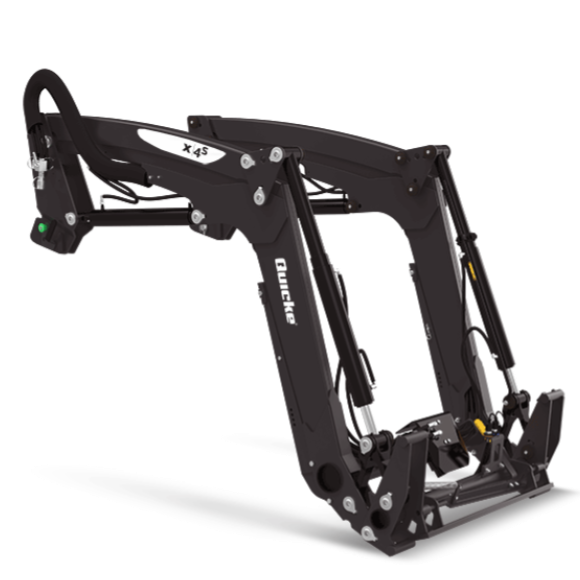

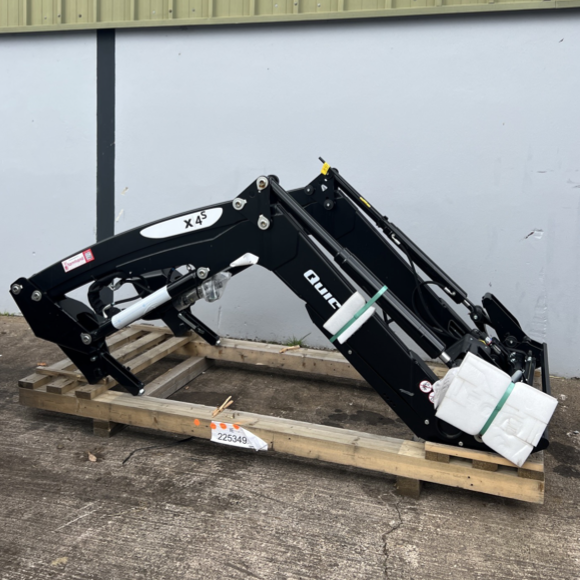

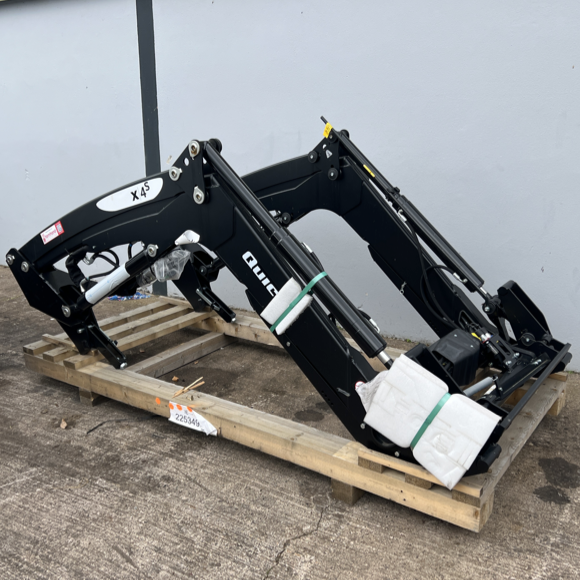

NEW QUICKE X4S FRONT LOADER BOOM IN STOCK

The optimum range of front loaders for tractors up to 120 hp.

With X-series we are giving you yet another first class alternative for small to medium-sized tractors. This series of front loaders combines design, performance and economy in a unique manner – so that your route to profitability will be as easy as possible.

TRACTOR PHYSICAL DATA

Tractor PTO HP Range (hp)

60-100

Tractor weight (max)(kg)

4500

Loader Weight (kg)

420

Arm width (C-C) (mm)

1040

LIFT HEIGHTS AND BUCKET ANGLES
Maximum Lift Height - Measured at Pivot Pin (m)3.70
Maximum Lift Height - Under Level Bucket (m)3.50
Maximum Dump Angle at Maximum height° (Degrees)49
Maximum Q Level angle° (Degrees)N/A
Maximum Rollback Angle at ground° (Degrees)42
LOADER FORCES
Lift Capacity to Maximum Height -800mm From Pivot Pin (kg)1 590
Lift Capacity, 1,5m Height -800mm From Pivot Pin (kg)1 710
Breakout Force -800mm From Pivot Pin (kg)1 850
Rollback Force at Ground Level -800mm From Pivot Pin (kg)2 280
REACH DATA
Clearance with bucket dumped 45 deg (mm)N/A
LOADER PHYSICAL DATA
Arm width (C-C) (mm)1040
Weight - Front loader (kg)420
LOADER POSITION
Digging Depth (mm)150
TRACTOR PHYSICAL DATA
Tractor PTO HP Range (hp)60-100
Tractor weight (max)(kg)4500
