Specifications

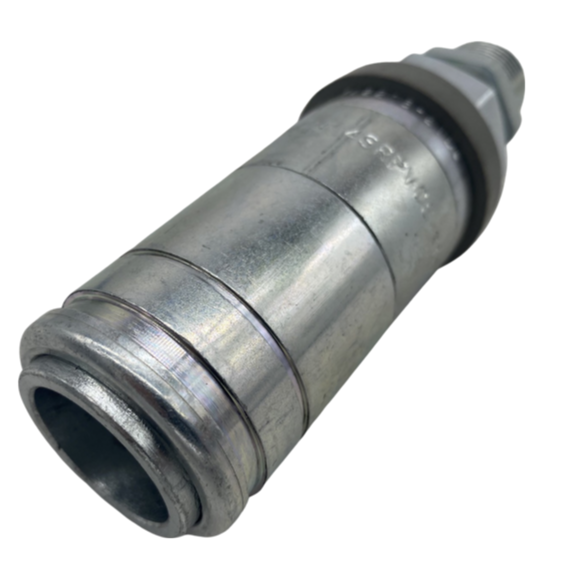

Push/pull coupling
Benefits
Plug and bush can be connected at operating pressure
Application
Agricultural vehicles
Properties
Medium used: mineral-based hydraulic oil (please contact the sales team for more information about the use of other media)
Interchangeable with: Faster ANV
Long description
Application range:
Agricultural vehicles
Benefits:
Plug and bush can be connected at operating pressure
Details:
Push/pull coupling
Properties:
Medium used: mineral-based hydra
Shape
Straight - 2 connection sides
Body size
1/2 Inch
Body size
12.5 mm
Connection no 1 type
Quick coupling
Connection no 1 type - male/female
Female
Connection no 1 diameter
42 mm
AConnection no 1 thread diameter
M22
Connection no 1 thread diameter
22 mm
Connection no 1 thread pitch
1.5 mm
Connection no 1 thread type
Metric
Connection no 1 thread type code
07
XConnection no 1 hex size
1.26 Inch
1.06 Inch
XConnection no 1 hex size
32 mm
27 mm
Connection no 2 type
Thread
Connection 2, type - male/female
Male
DConnection 2 diameter
42 mm
AConnection 2, thread diameter
M22
Connection 2, thread pitch
1.5 mm
Connection 2, thread type
Metric
Connectable under pressure
Yes
ISO standard
7241-A
Outside diameter
1.65 Inch
Outside diameter
38 mm
Total length
4.93 Inch
L1Total length
123.5 mm
Material
Steel
Surface treatment
White passivated
Working pressure
250 BAR
Max working temperature
125 °C
Min working temperature
-25 °C
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
Quick disconnection working type
Pull to disconnect
Seal material
Nitrile rubber [NBR]
Teflon (PTFE)
Series
4SRPV
Valve type
Poppet
Weight
561.5 g
