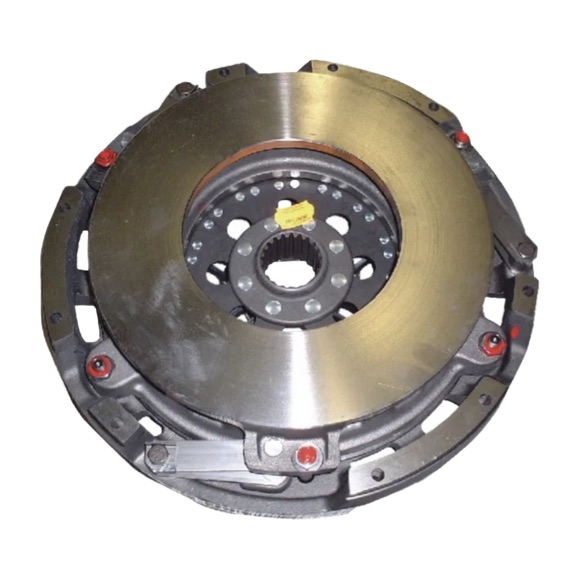

DEUTZ DX 90 DUAL CLUTCH UNIT 23000911 / 02940394 without PTO plate

Dxab 85

Dxab 90

Dxbis

Dxbis 85
Dxbis 90

Technical info

SINGLE-PLATE CLUTCH
1st figure: clamping system
S = coil spring
T = diaphragm spring
N = fixed PTO on coil spring clutch
D = fixed PTO on diaphragm spring clutch
H = diaphragm clutch with levers
J = diaphragm clutch with levers and fixed PTO
2nd figure: housing material
B = pressed steel
G = cast iron
3rd figure: flywheel type
F = flat flywheel
V = pot flywheel
A = non-standard version
4th figure: release bearing contact area
O = without release plate
M = with release plate
R = curved diaphragm fingers
P = flat diaphragm fingers
DOUBLE CLUTCH:
1st figure: clamping system
S = coil spring
T = diaphragm spring
K = combination of coil and diaphragm spring
X = twin plate clutch; diaphragm spring; levers
Y = twin plate clutch; coil spring; levers with release plate
Z = twin plate clutch; diaphragm spring; levers; fixed PTO
2nd figure: housing material
B = pressed steel
G = cast iron
3rd figure: clutch type
A = combined or sequential
U = independent
W = single gear shaft
4th figure: number of levers
3 = 3 levers
6 = 6 levers

LuK type code
TGU 6
Levers
Yes
Number of holes
9
Number of springs
1
Outside diameter

300 mm
280 mm

Suitable for
Deutz
Type
TGU6
