TCVNA3570185K3
EAN 8716106027774
Unit
Each
Details
Length indicator
Equipped with a controlled check valve
Application range
Bore 63 suitable for tractors up to 74 kW
Bore 70 suitable for tractors up to 135 kW
Bore 90 suitable for tractors up to 206 kW
Properties
Maximum radial load: 10% of the axial force
Technical info
Medium: mineral oil, HLP ISO VG 32 to ISO VG 46
Purity of the medium : ISO 4406 22/20/17 or NAS 9
Benefits
Ready to use
Settings can be easily read
Maintains position
Mounting type - rod connection
Hook
Mounting type - cylinder connection
Knuckle
Top link category - rod connection
3
Top link category - cylinder connection
3

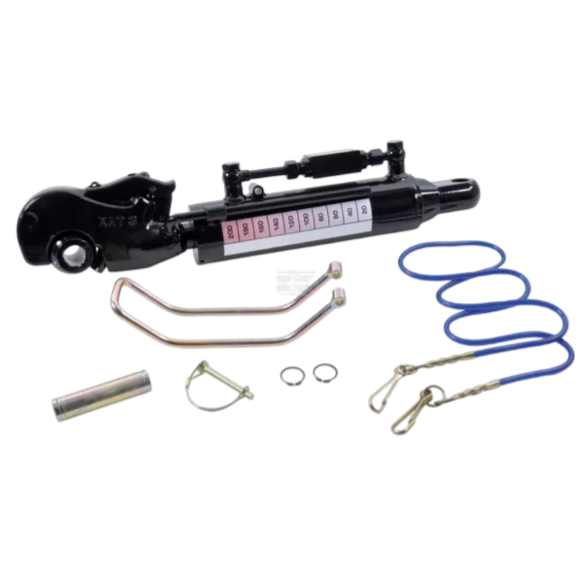

Consists of
Ball
Control cable
Bracket
Fork bolt
Min. length
540 mm
AMax. length
725 mm
Stroke
185 mm
Rod diameter
35 mm
Cylinder bore diameter
70 mm
EOutside diameter
80 mm
Mounting hole diameter - rod connection
25 mm
Mounting hole diameter - cylinder connection
25 mm
Mounting thread type - cylinder connection
BSP
CMounting thread diameter - cylinder connection
3/8 Inch
Mounting thread type - rod connection
BSP
Mounting thread diameter - rod connection
3/8 Inch
Rod material
Steel 20MnV6
Rod surface treatment
Chromated
Cylinder material
Steel ST52
Min. working temperature
-25 °C
Max. working temperature
85 °C
Nominal pressure
200 BAR
Max. working pressure
250 BAR
Max. push capacity at 200 bar
7.7 t
Max. pull capacity at 200 bar
5.8 t
Max. piston speed
0.1 m/s
Colour
Black
RAL colour code
9005
